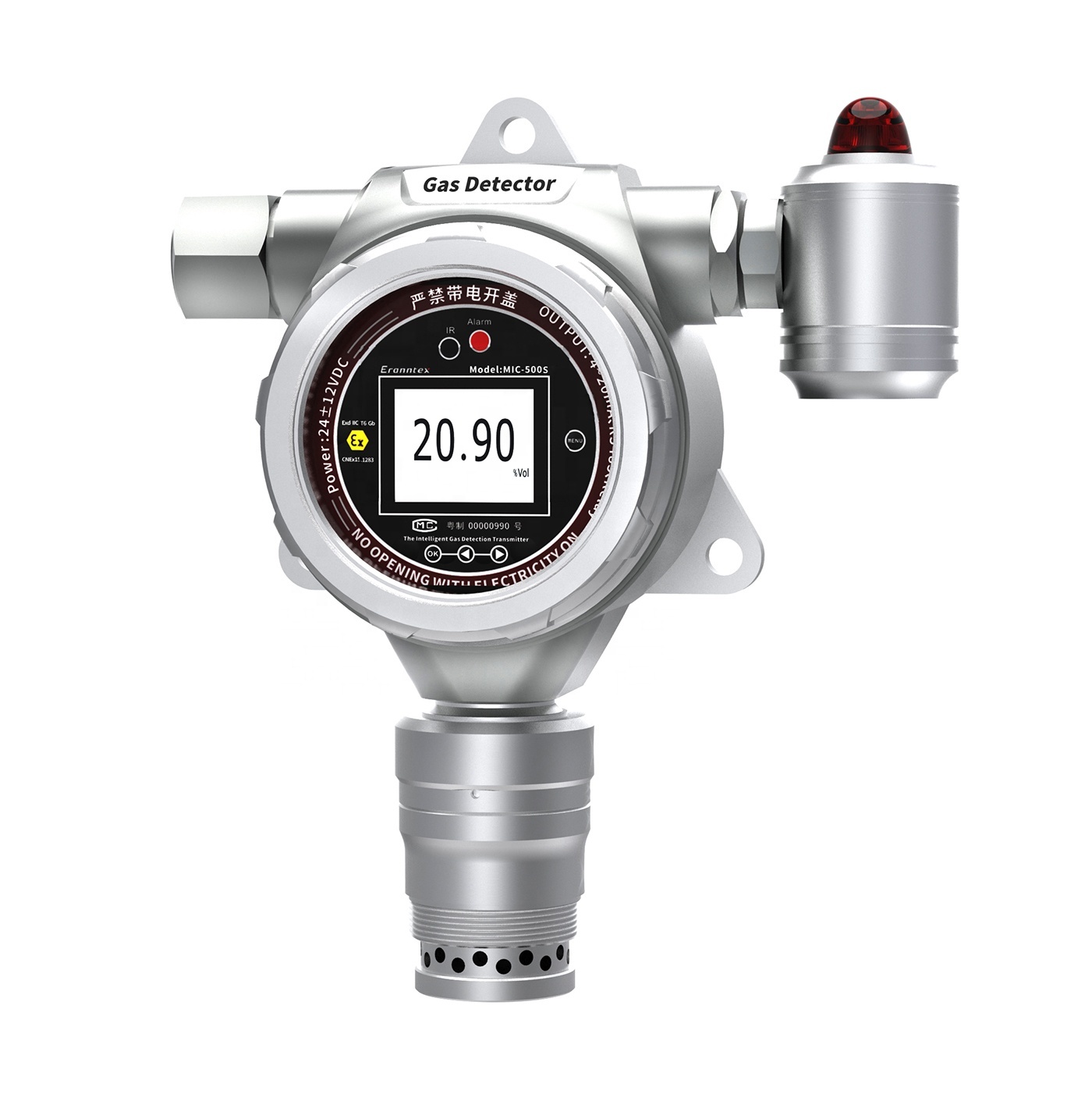

MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector

  • MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector
  • MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector
Place of Origin China
Marka adı Zetron
Sertifika CE ATEX SIL
Model Number MIC500S
Minimum Order Quantity 1 set
Fiyat USD 890/set - 7298/set
Packaging Details 230x210x120 mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Product name MIC500S Function measure gas leakage and concentration
Detecting Gas Combustible Gas/H2S/CO/O2/H2S/H2/CH4 Connection 4-20mA, RS485, Hart, Relay
Customized support OEM, ODM, OBM Weight 2.5kg
Class Of Protection IP65/IP66 Humidity 0-95%RH (no dew)
Detection Mode Diffused/Pipeline/Pump suction
Mesaj bırakın
Ürün Açıklaması

MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector

OVERVIEW







MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 0MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 1MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 2MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 3MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 4MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 5MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 6MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 7MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 8
MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 9



SPECIFICATION





Gas Toxic& Harmful Gas more than 500 types Range 0-50000PPM;
0-100%LEL ;
0-100%Vol.
other ranges can be customized
Size 210×170×85mm (L×H×W) Weight 1.8 Kg
Installation method Pipeline Type
Wall Mounting Type
 Display 1.7-inch high-definition color screen
Environment Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
 Approvals IP65; Exd Ⅱ CT6
Accessories Manual, qualification certificate, warranty card, outer packaging box
Working Voltage 12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
Installation Type Accessories
(Optional configuration)
 Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters




APPLICATION



MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector 10
