Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66

  • Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66
  • Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66
Menşe yeri Çin
Marka adı Zetron
Sertifika ISO,CE,FCC, ROHS, CNEX
Model numarası PTM600-EG
Min sipariş miktarı 1
Fiyat $100-$5000
Ambalaj bilgileri Kağıt karton
Teslim süresi 3-7 gün
Ödeme koşulları T/T, Western Union, MoneyGram
Yetenek temini 1000 set/ay

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ürün adı Zetron PTM600-EG Lazer Metan ve Etan Detektörü Koruma seviyesi IP66
Tespit edilen gaz Metan (CH₄) ve etan c₂h₆ Yanıt Süresi 0,5 sn
Ölçüm yöntemi Pompa Sıkıştırma Tipi Maksimum örnekleme akış hızı 1.5 L/dakikada
Vurgulamak

Zetron PTM600-EG methane detector

,

laser methane detector with IP66

,

fast response methane ethane detector
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Mesaj bırakın
Ürün Açıklaması

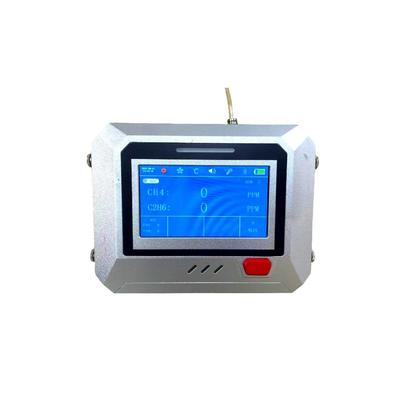

Zetron PTM600-EG Portable Laser Methane Ethane Gas Detector
Natural Gas Pipeline Leak Inspection
The Zetron PTM600-EG portable laser methane ethane detector utilizes advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology for natural gas pipeline leak detection. This device simultaneously detects methane and ethane concentrations, enabling differentiation between natural gas and biogas. With superior detection sensitivity and extended service life, it represents a modern high-tech solution for gas detection.
Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 0
Key Features
  • Multi-range coverage: Supports ppm, %LEL, and %VOL full-range display to meet diverse application needs.

  • Intelligent and user-friendly operation: One-button startup combined with an intuitive touchscreen interface for fast and easy operation.

  • Long service life: Device lifespan of up to 10 years.
  • High specificity: Precisely identifies chemical reactions of methane and ethane only.
Technical Specifications
Attribute Value
Product Name Zetron PTM600-EG Laser Methane and Ethane Detector
Detected Gas Methane (CH₄) and Ethane C₂H₆
Response Time 0.5 s
Measurement method Pump-suction type
Maximum sampling flow rate 1.5 L/min
Measuring range Methane: 0-100,000 ppm; Ethane: 0-30,000 ppm
Sensitivity 1ppm
Power supply Lithium-ion battery 7.2V 6800mAh or 12V DC
Operating Temperature -25℃ ~ 50℃
Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 1 Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 2
Applications
The PTM600-EG Portable Laser Methane Ethane Detector is designed for accurate, rapid detection in various industrial and municipal applications. Its advanced TDLAS technology provides high specificity and sensitivity for identifying natural gas or biogas leaks. With pump-suction design, fast 0.5-second response, and full-scale measurement range (ppm, %LEL, %VOL), it's ideal for pipeline patrols, station inspections, municipal underground pipelines, courtyard pipelines, long-distance transmission lines, and other specialized inspection scenarios. The intrinsically safe design with IP66 protection grade offers professionals a durable, reliable gas detection solution.
