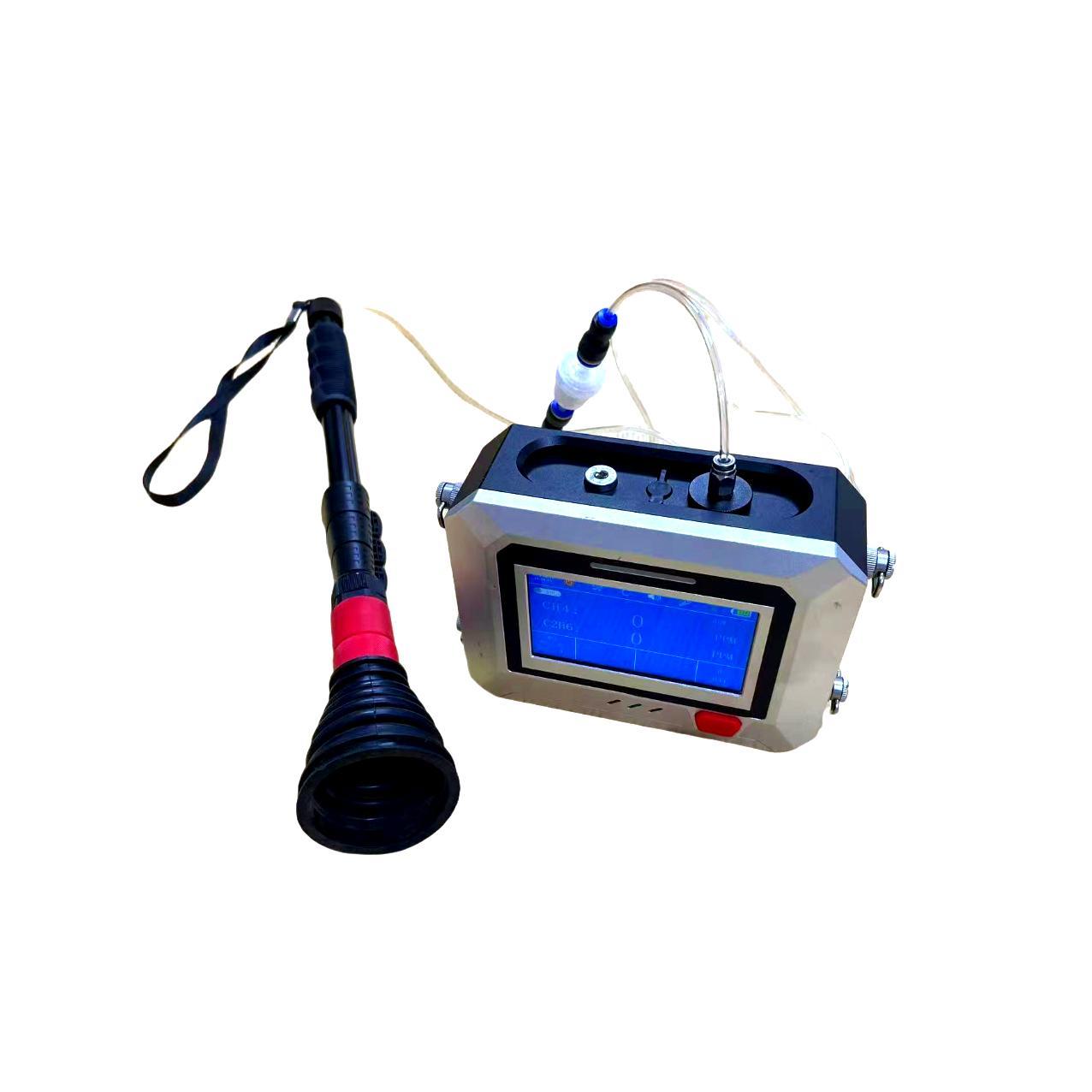

Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4

  • Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4
  • Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4
Menşe yeri Çin
Marka adı Zetron
Sertifika ISO,CE,FCC, ROHS, CNEX
Model numarası PTM600-EG
Min sipariş miktarı 1
Fiyat $100-$5000
Ambalaj bilgileri Kağıt karton
Teslim süresi 3-7 gün
Ödeme koşulları T/T, Western Union, MoneyGram
Yetenek temini 1000 set/ay

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ürün adı Zetron PTM600-EG Lazer Metan ve Etan Detektörü Tespit edilen gaz Metan (CH₄) ve etan c₂h₆
Ölçüm aralığı CH4: 0-100.000 ppm; C2H6: 0-30.000 ppm Ölçüm yöntemi Pompa Sıkıştırma Tipi
Koruma seviyesi IP66 Maksimum örnekleme akış hızı 1.5 L/dakikada
Patlama geçirmez sertifika Exib IIB T4 GB
Vurgulamak

Zetron PTM600-EG methane detector

,

laser methane detector with IP66

,

fast response methane ethane detector
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Mesaj bırakın
Ürün Açıklaması
Zetron PTM600-EG TDLAS Portable Gas Analyzer for Natural Gas and Biogas Identification
Product Overview

The Zetron PTM600-EG Portable Laser Methane & Ethane Detector features cutting-edge Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, specifically designed for natural gas pipeline leak detection. Its unique capability to simultaneously monitor methane and ethane concentrations allows for precise differentiation between natural gas and biogas.

Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 0
Key Features
  • Intuitive and User-Friendly: One-button start with a humanized touchscreen interface for simple and fast operation.
  • Multiple Range Modes: Provides full-range display in ppm, %LEL, and %VOL to cover diverse applications.
  • Long Service Life: Designed for up to 10 years of use, offering high return on investment.
  • Intrinsic Safety Design: Complies with stringent safety standards, suitable for potentially explosive environments.
Technical Specifications
Attribute Value
Model PTM600-EG
Product Name Zetron PTM600-EG Laser Methane and Ethane Detector
Detected Gas CH₄ and C₂H₆
Measuring range CH4: 0-100,000 ppm; C2H6: 0-30,000 ppm
Measurement method Pump-suction type
Operating time Battery life ≥10 hours, standby ≥24 hours
Operating humidity <90% RH (non-condensing)
Protection rating IP66
Dimensions 170 mm (L) × 70 mm (W) × 130 mm (H)
Applications

The PTM600-EG is an advanced portable solution for precise natural gas leak detection, combining high sensitivity with fast response. Its dual-gas detection capability enables simultaneous monitoring of methane and ethane, making it ideal for distinguishing natural gas from biogas.

Designed for diverse operational environments, it is perfectly suited for routine inspections of municipal pipelines, residential gas safety checks, and energy site monitoring. With robust IP66 protection and intrinsic safety features, the PTM600-EG performs reliably in challenging locations including long-distance transmission pipelines and special industrial environments.

Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 1 Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 2
